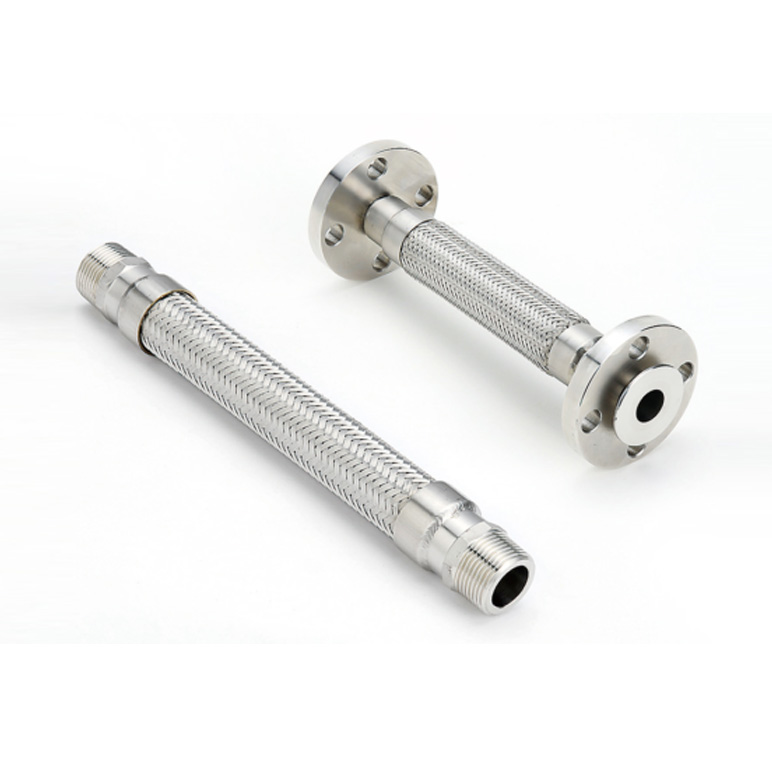

Flexible Metal Hose with Braiding

Liên hệ
Còn hàng

Model: EFH Series
Material:
Flexible hose: stainless steel AISI321 (standard), AISI 316L
Mesh cover: stainless steel AISI 304L, AISI316L
Connector: Stainless steel 304/316, Steel, Iron or other material.
Connection types:

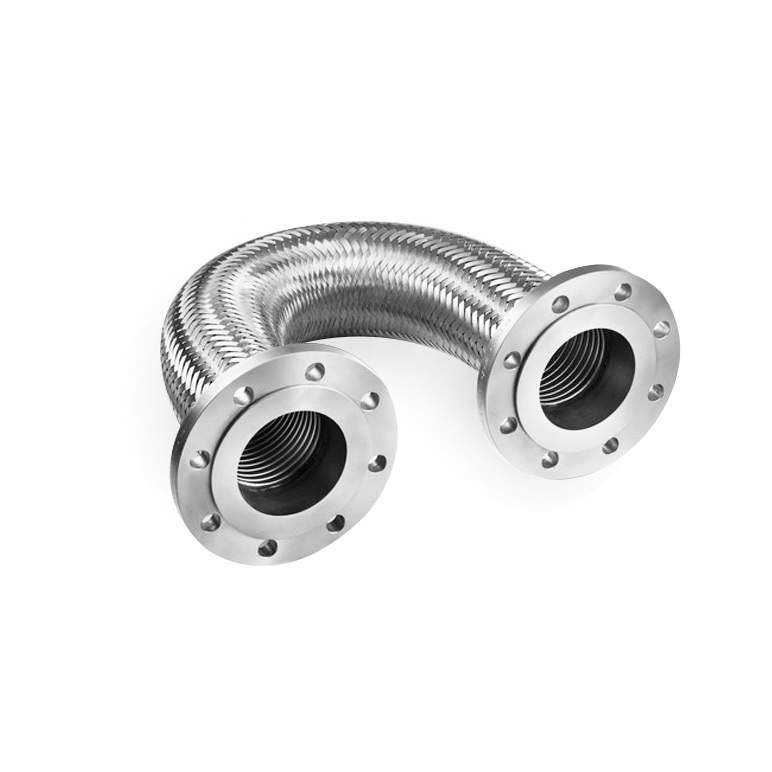

Fixed, rotary type flange connection
Socket or Butt-Weld type welding connection

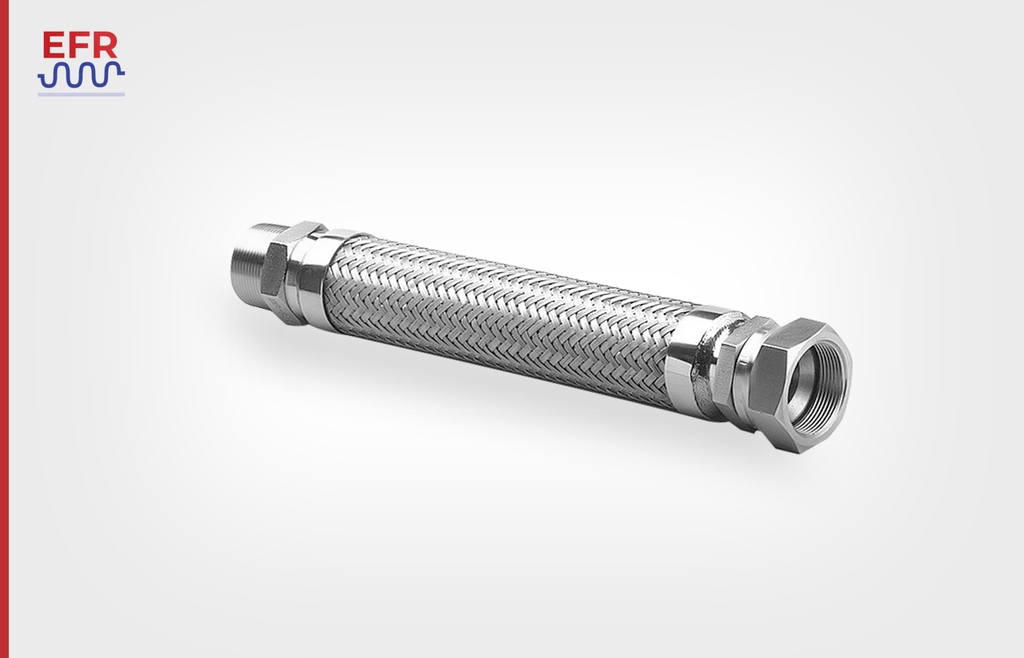

Connection of internal thread, external thread
Other styles on request.

In piping systems, the equipment of  flexible metal hose to protect the pipes from damage caused by vibration, expansion and to meet the need of moving - near flexible direction as a must. With the Flexible Metal Hose with Braiding EFR , we would like to present to you a special line of stainless steel soft couplings, which are the first choice for quality and many other advantages.

Flexible Metal Hose with Braiding EFR is a quality product line manufactured by E-Flex Vietnam on request and distributed nationwide. We have a mission to create true "Pipe Protector" products, protecting your pipes during use.

Flexible Metal Hose with Braiding EFR, in  addition to reducing the protective vibration of the pipe, also provides high pressure resistance, flexible elasticity, and fire safety. Due to the stainless steel material, it can be used in chemical environments.

The product is highly regarded by the market for meeting most of the specifications and certification requirements needed for use in both residential piping systems and large industrial projects.

To choose the right flexible coupling for the needs of each different application. Customers must first define some basic specifications in order to choose the right flexible coupling for the application. We call it “STAMPED” for short.

S = SIZE: Size and length of stainless steel coupling.

T = TEMPERATURE: Usage temperature.

A = APPLICATION: The medium used

M = MATERIAL: Flexible hose materials and fitting

P = PRESSURE: Pressure to use

E = ENDS: Connection type

D = DELIVERY: Delivery time & quality of packing.


PRODUCT ADVANTAGES:

❖ Meets most pipe sizes (more than 18 sizes 1/4 "or more).

❖ Meet most connection types (more than 10 common connection types).

❖ Meet most solvents, mounting position (see details below).

❖ Work well under extreme conditions (temperature, pressure).

❖ Super wide working temperature range: -80 / + 427 ° C.

❖ Wide working pressure range: 0 up to 195 bar (size 1/4 ").

❖ Flexible flexion capacity: Min 28mm (size 1/4 ").



COMMITMENT TO QUALITY:

❖ 100% imported stainless steel pipes: AISI 321 (standard), AISI 316L.

❖ 100% tested before factory (pneumatic or hydraulic).



FULLY FIT FOR PIPE ROUTES:

HVAC system

Water supply & treatment

Chemical production

Food & beverage

Gas

Heat & hot water

Shipping

And industrial plumbing applications.



CONNECTION TYPES:

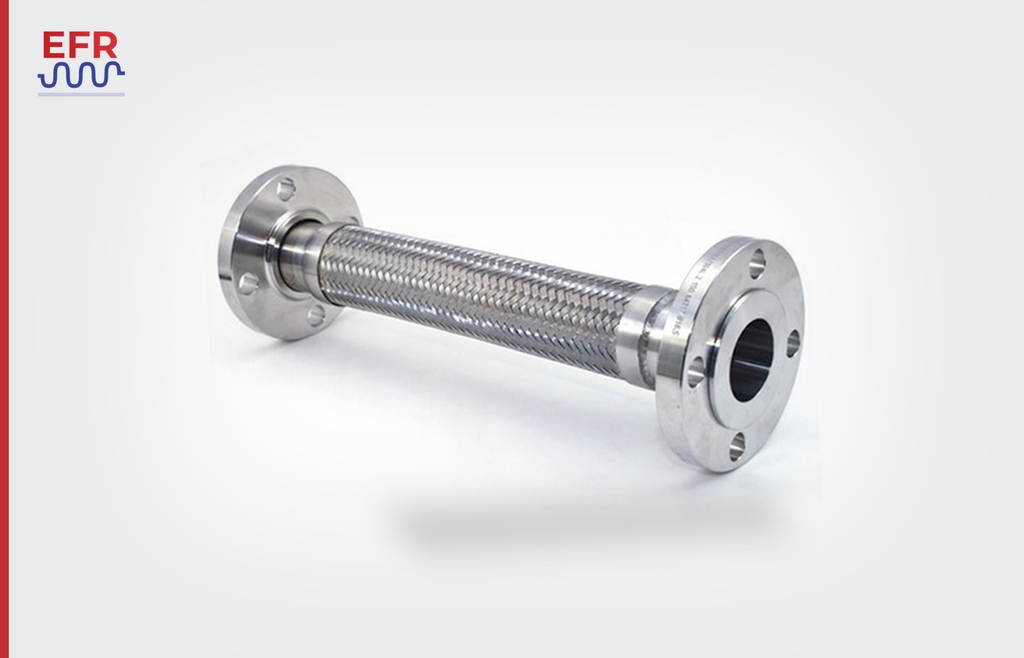

Fixed type flange connection

Connection of swivel type flange

Socket or Butt-Weld type welding connection

Connection of internal thread, external thread

Clamp Clamp connection

Camlock coupling connection

(Please contact us if you need another type of connection)



MATERIAL:

Flexible hose: Stainless steel ANSI 316L / 321L

Mesh cover: stainless steel AISI 304/316

Connecting fittings: Stainless steel 304/316, Steel, Iron or other materials.

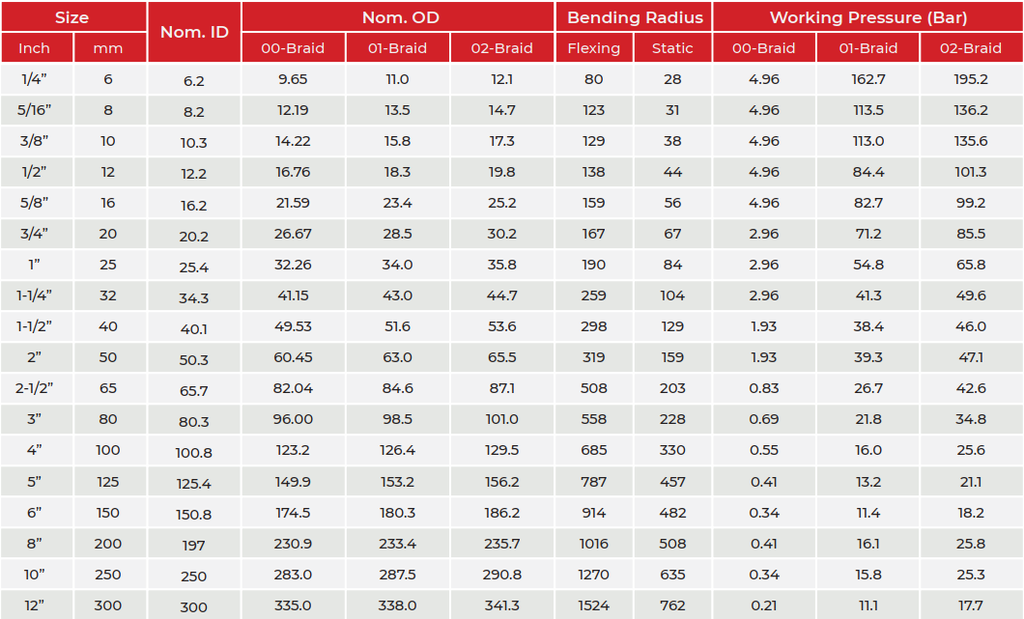

SIZES & PARAMETERS:



ORDERING GUIDE:

The product is produced according to your custom ingredient Code listings.



There are 4 steps to create the Code code list:

Step 1: Select the Code for the tube intestine (Bellow).

Step 2: Select the Code for the braid (Braid).

Step 3: Select Code code for connector (Fitting).

Step 4: Rearrange the order and send it to E-Flex Vietnam.



CATALOGUE & INSTALLATION INSTRUCTIONS

 See Catalgue Products

See Installation Instructions
